Deck Equipment

INTERCON began producing deck machinery in the 1960s as an outgrowth of our Towing Winch business. Intercon towing winch customers saw the value in operating heavy-duty equipment that was built to last the life of the vessel, not simply the life of the shipyard warranty period. Intercon produces mooring winches, windlasses, combination mooring winch/windlasses, vertical capstans, and combination vertical capstan/windlasses for customers who demand the best from every piece of equipment on board.

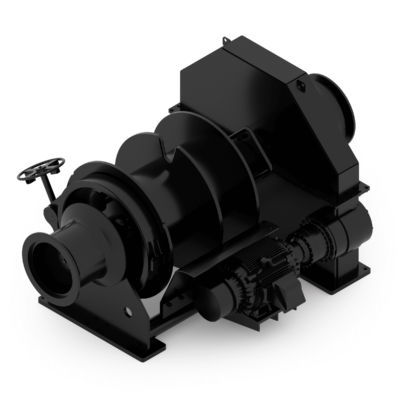

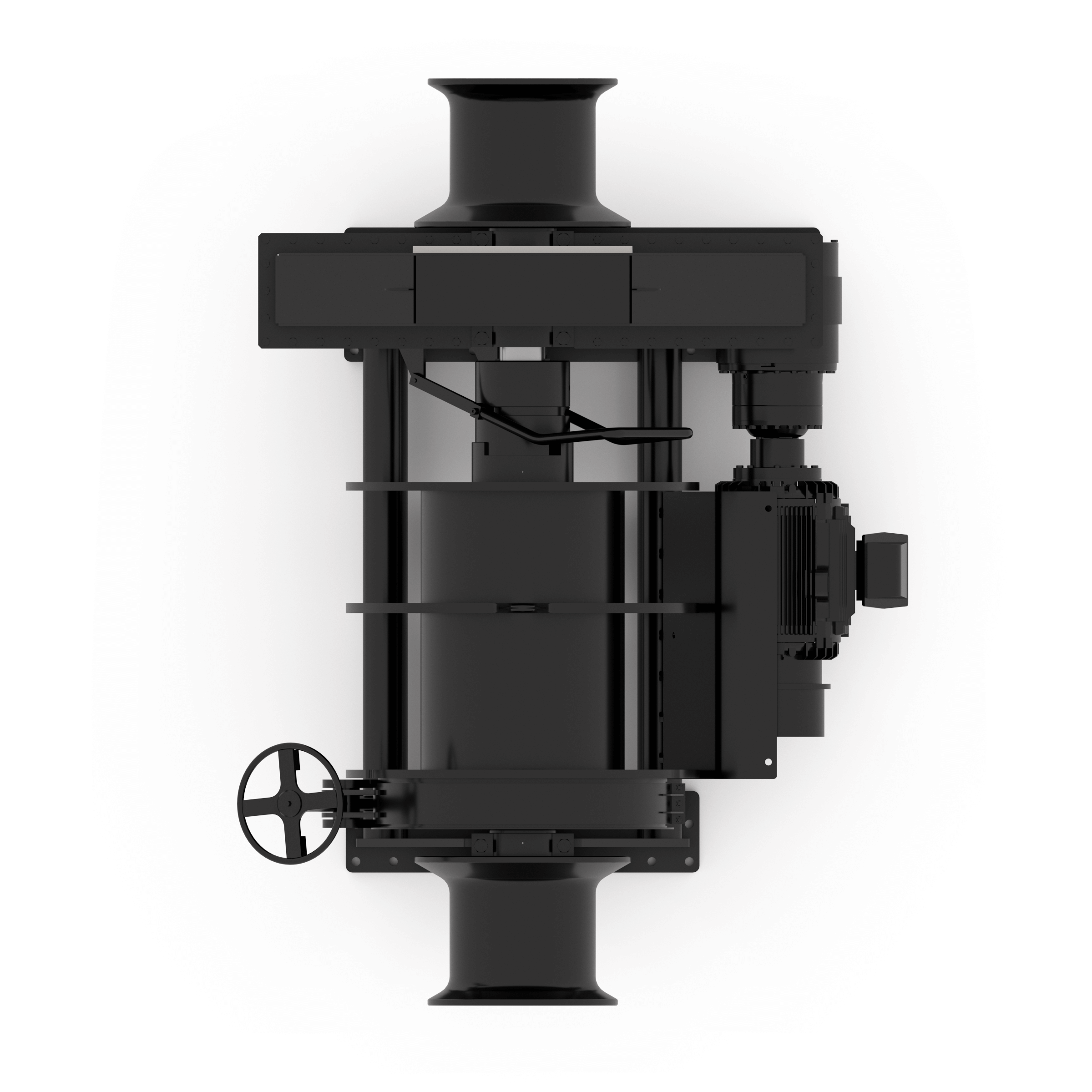

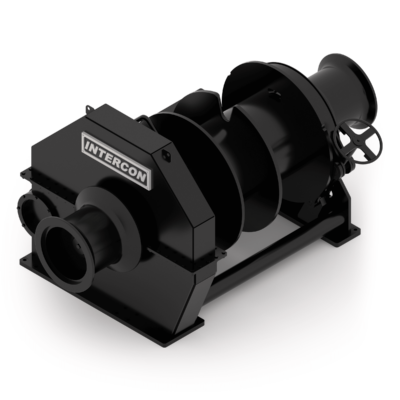

SD-137 Single Drum Mooring Winch

SD-137 Single Drum Mooring Winch

Max Line Pull:
27.5 tn @ 33 fpm

Light Line Pull:
9.2 tn @ 100 fpm

Wide Drum Storage Capacity:
1,000 ft

Narrow Drum Storage Capacity:
650 ft

Rope Diameter:
1.38 in

Brake Capacity:
45 tn

Weight W/O Rope:
21,000 lb

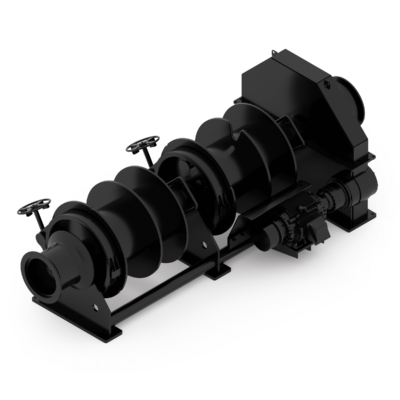

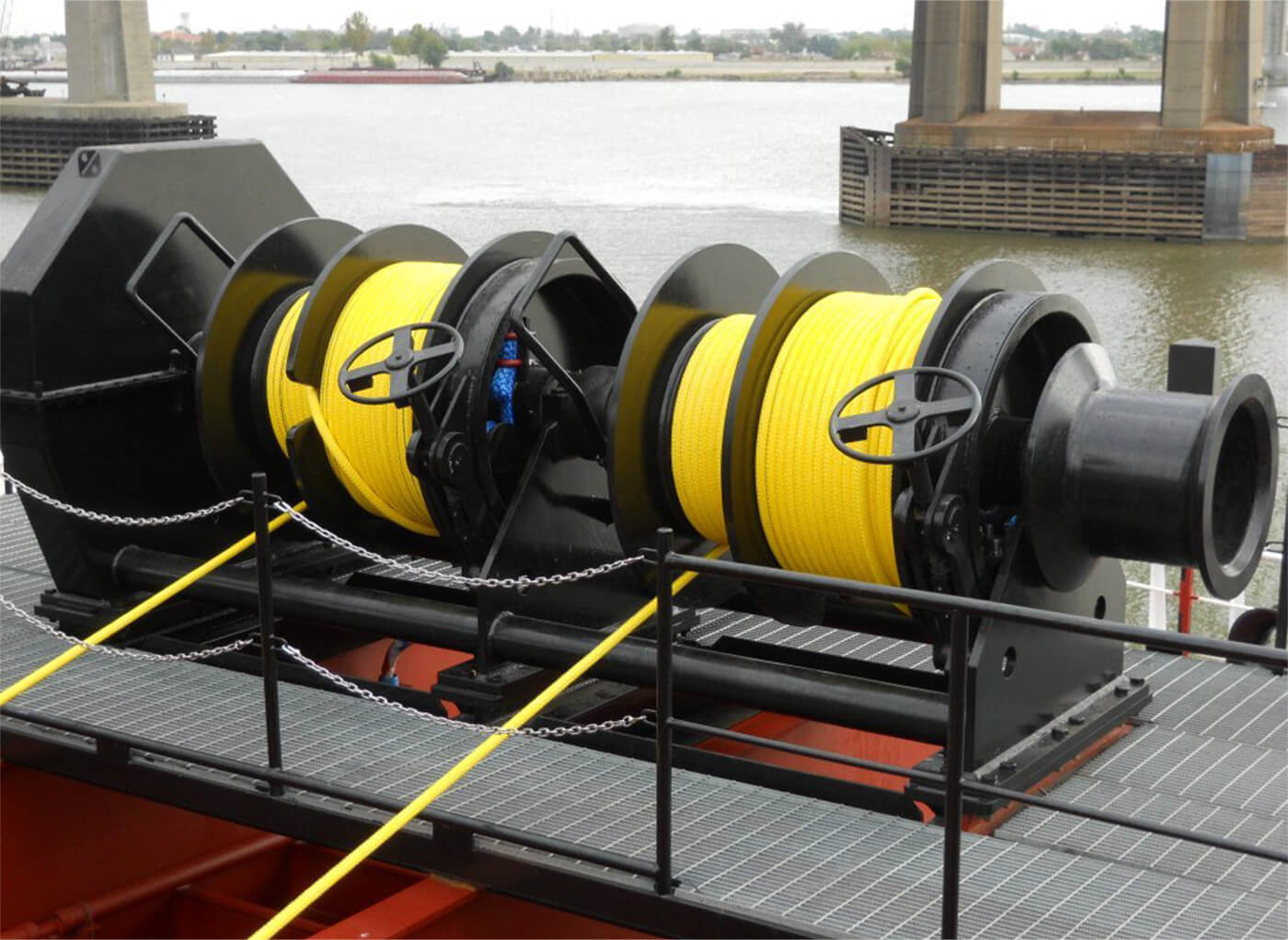

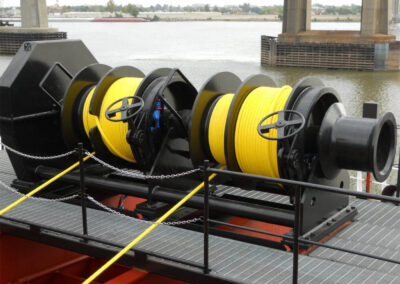

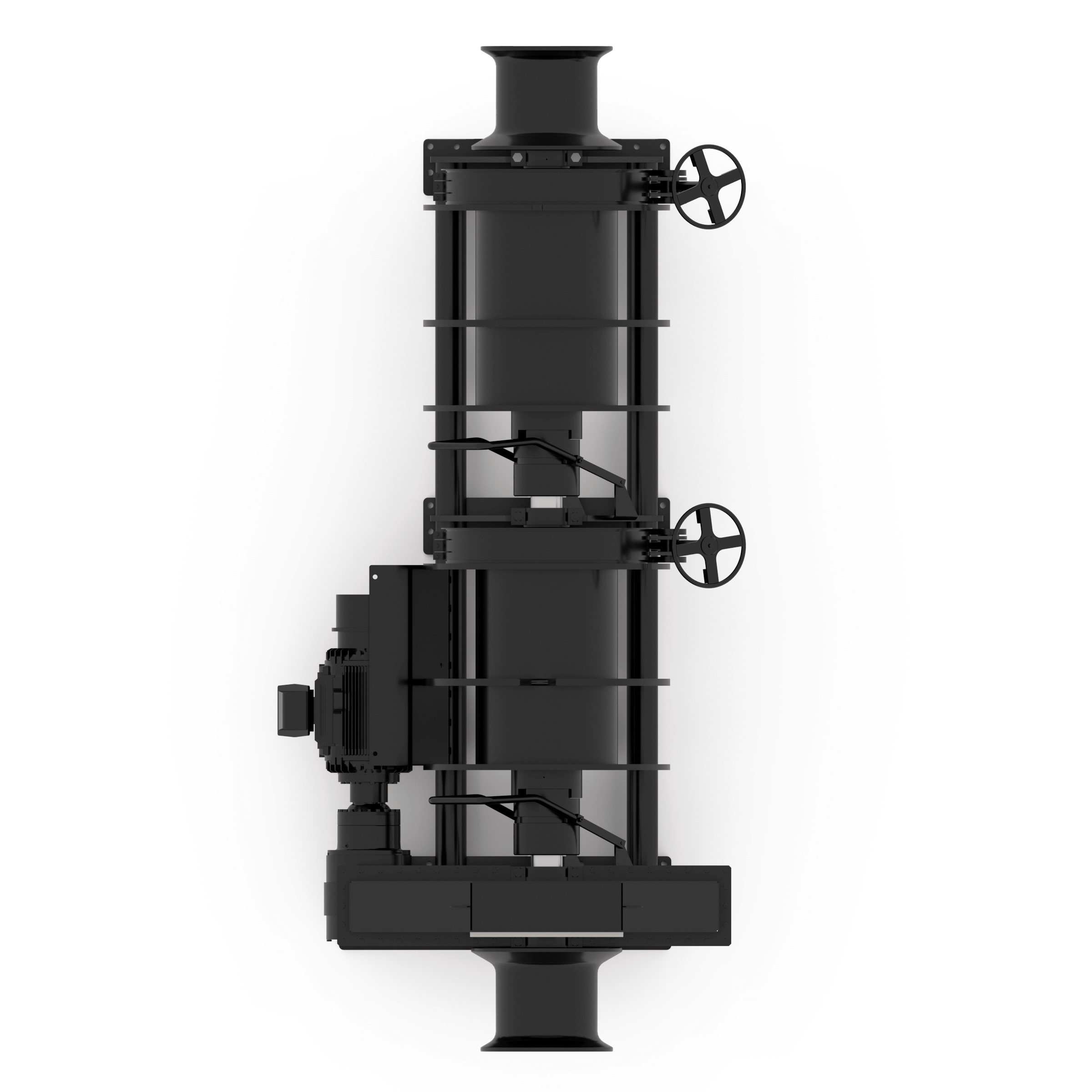

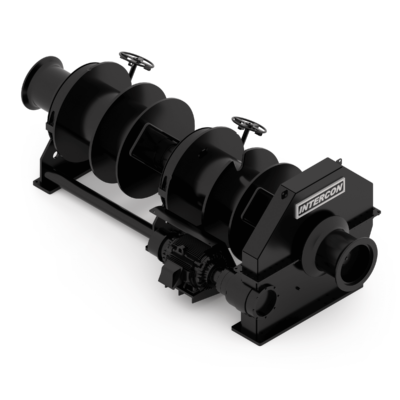

DD-137 Double Drum Mooring Winch

DD-137 Double Drum Mooring Winch

Max Line Pull:
27.5 tn @ 33 fpm

Light Line Pull:
9.2 tn @ 100 fpm

Wide Drum Storage Capacity:
1,000 ft

Narrow Drum Storage Capacity:
650 ft

Rope Diameter:
1.38 in

Brake Capacity:
45 tn

Weight W/O Rope:
27,000 lb

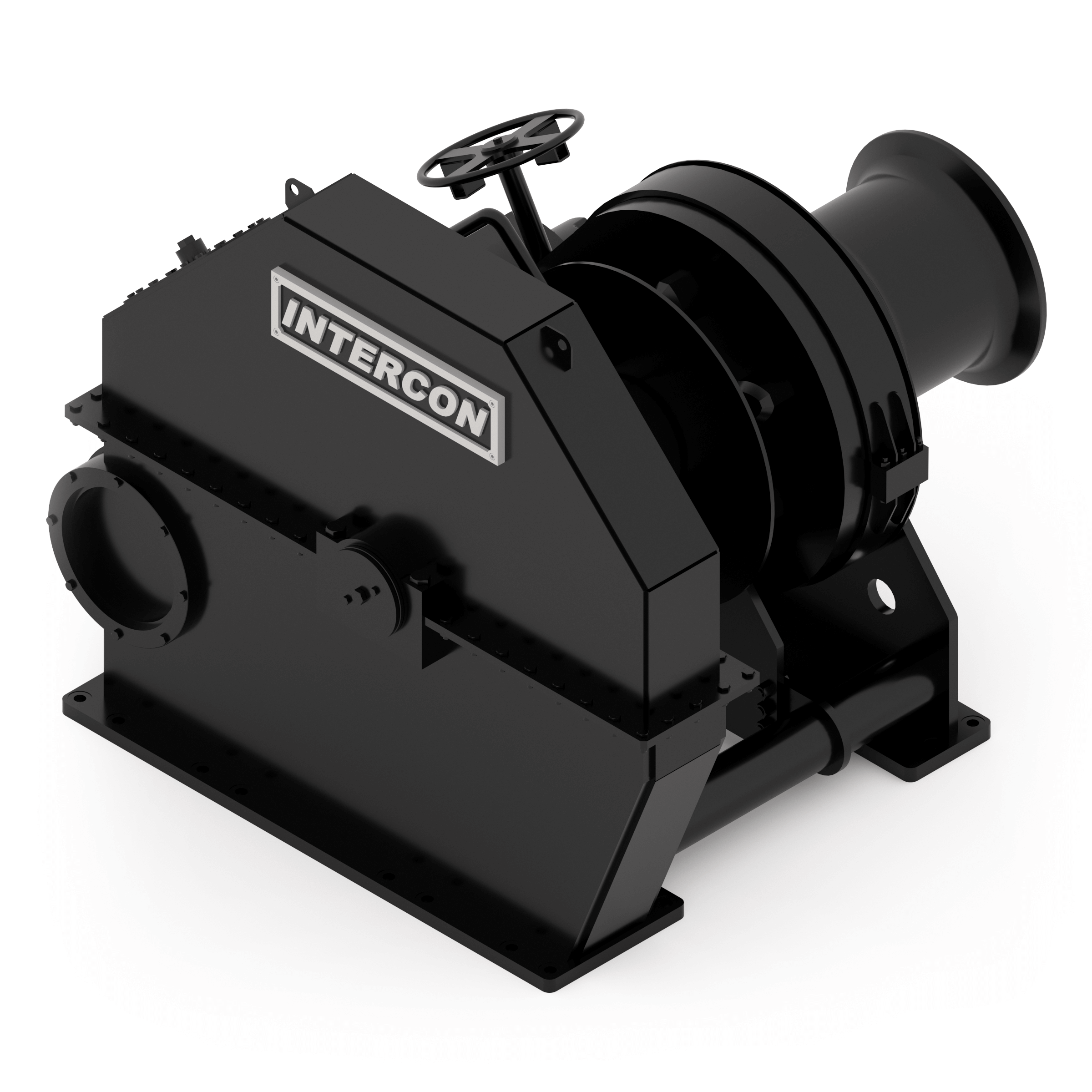

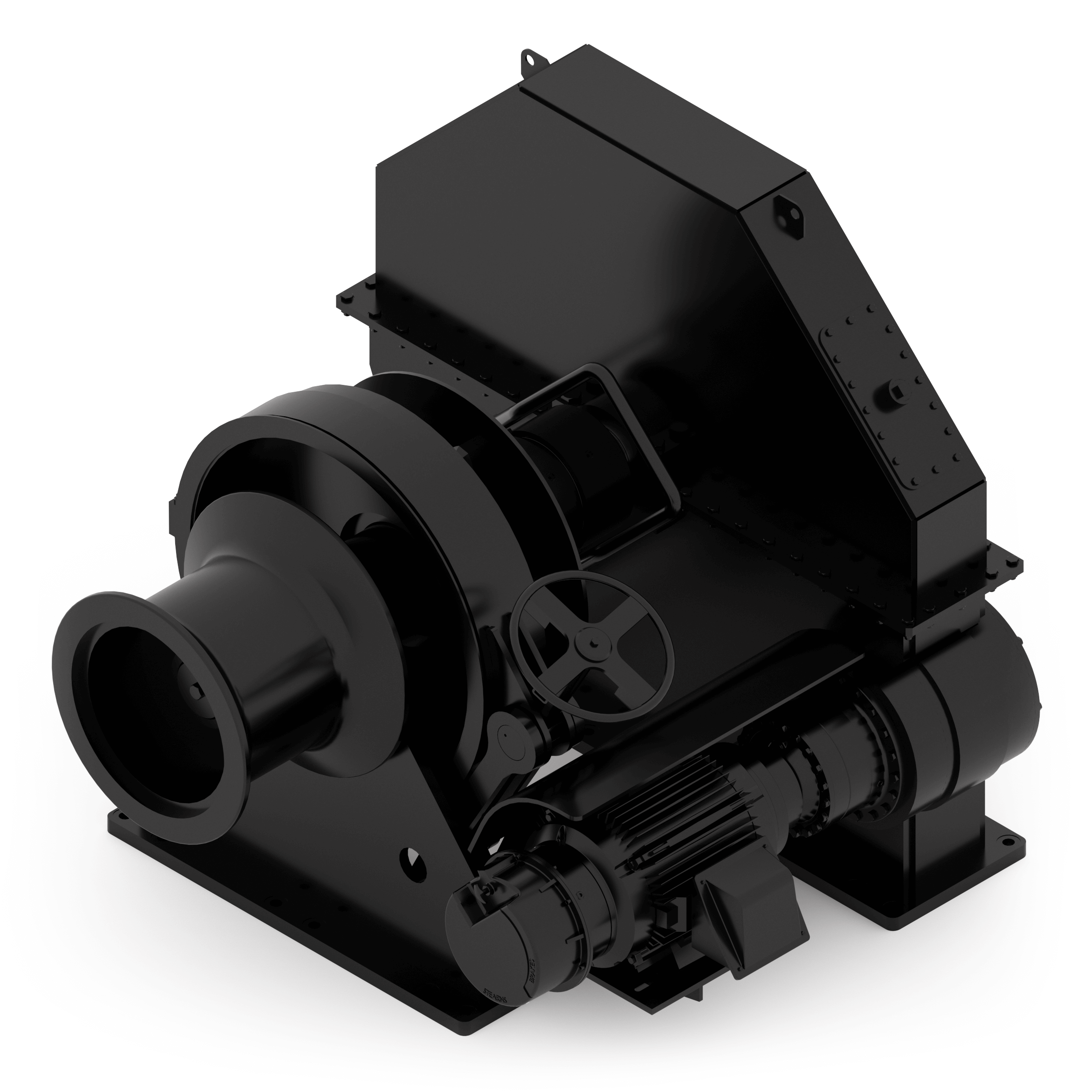

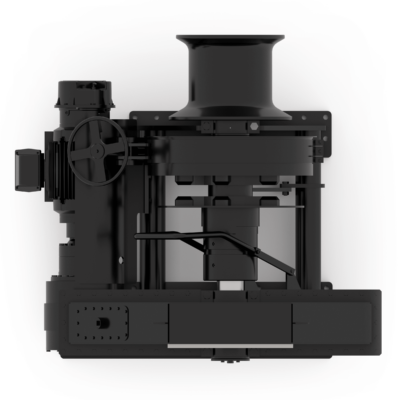

ESW-175 Anchor Windlass

ESW-175 Anchor Windlass

Chain:
1.75 in

Max Line Pull:
21 tn @ 30 fpm

Brake Capacity:
102.5 tn

Envelope:
66 in x 66 in x 102 in

Weight:
20,000 lb

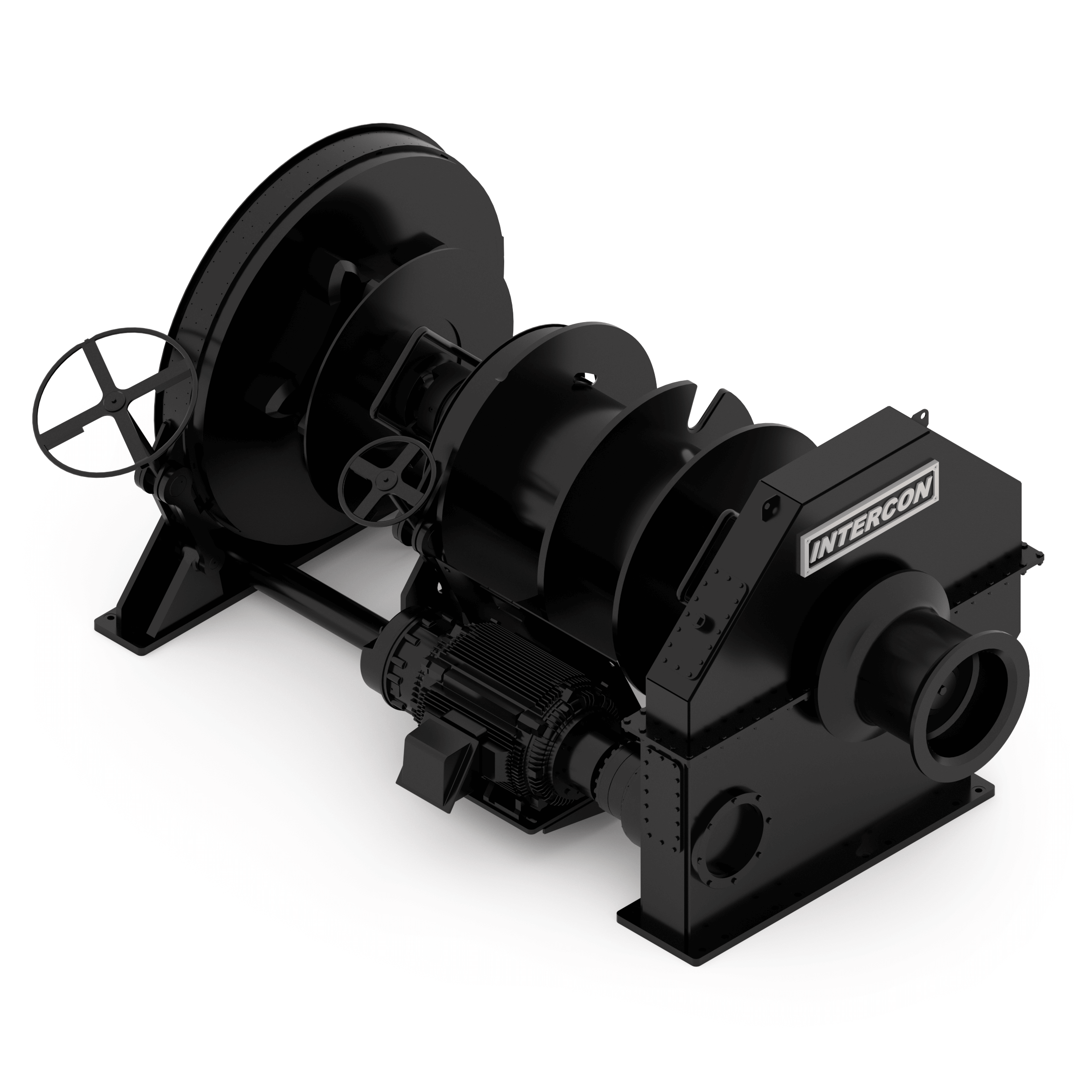

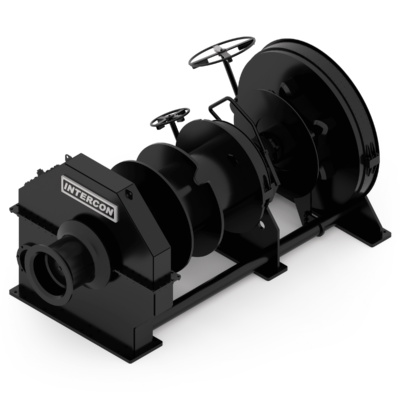

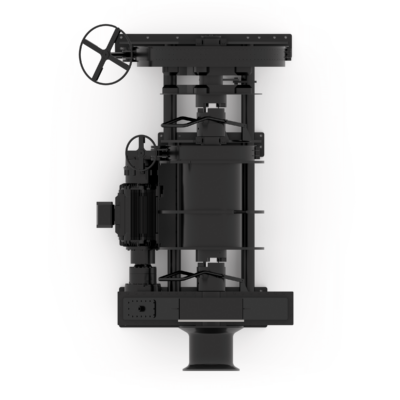

ESW-287D Anchor Mooring Windlass

ESW-287D Anchor Mooring Windlass

Chain:
2.88 in

Max Line Pull:
40.5 tn @ 33 fpm

Light Line Pull:
14 tn @ 100 fpm

Windlass Brake Capacity
141 tn

Weight W/O Rope:
35,000 lb

Rope Diameter:
1.50 in

Max Line Pull:
48 tn @ 28 fpm

Light Line Pull:
16.5 tn @ 85 fpm

Wide Drum Storage Capacity:
920 ft

Narrow Drum Storage Capacity:
644 ft

Mooring Brake Capacity
60 tn

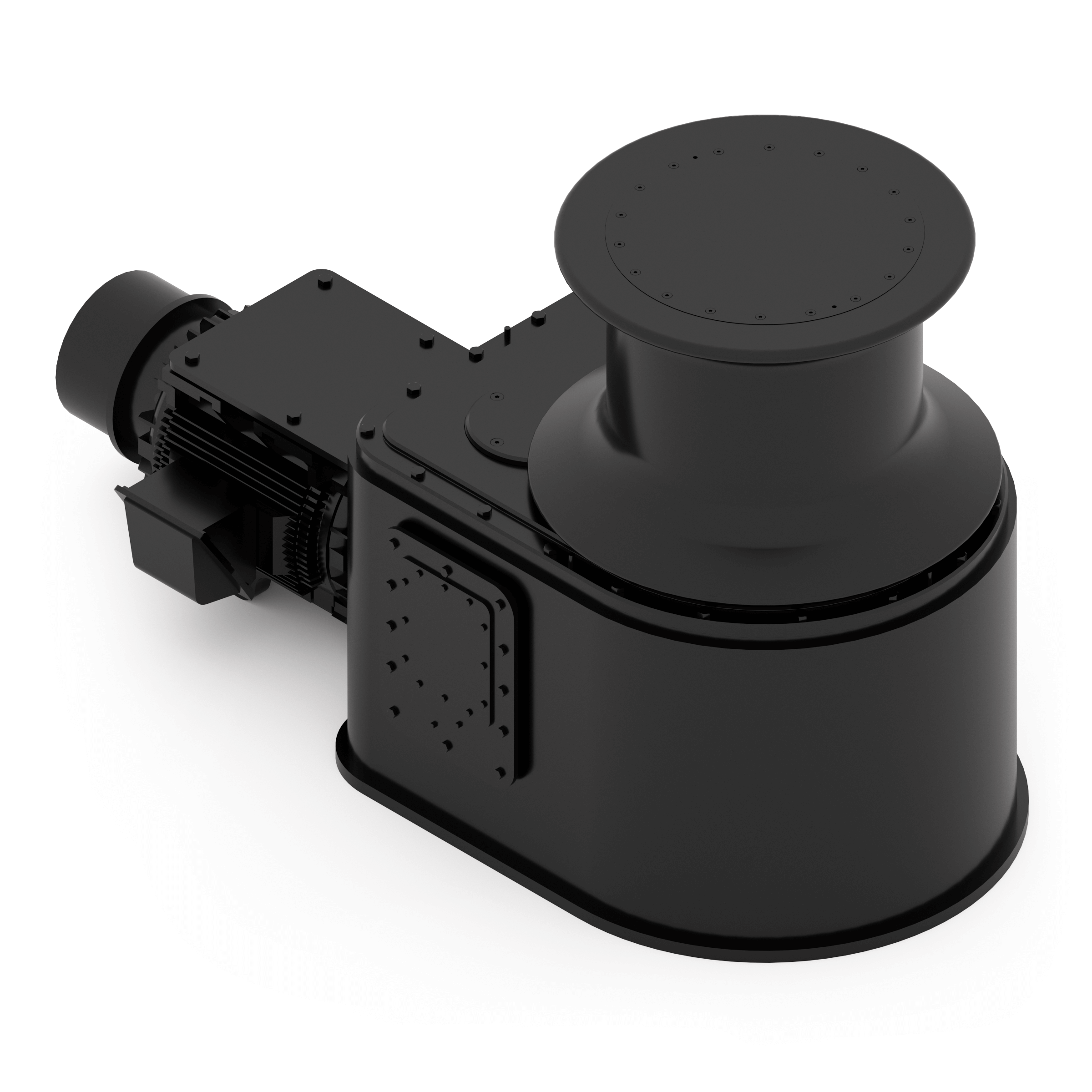

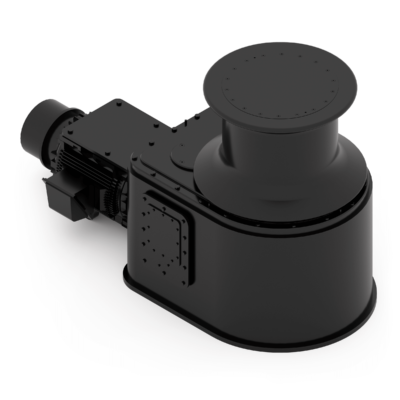

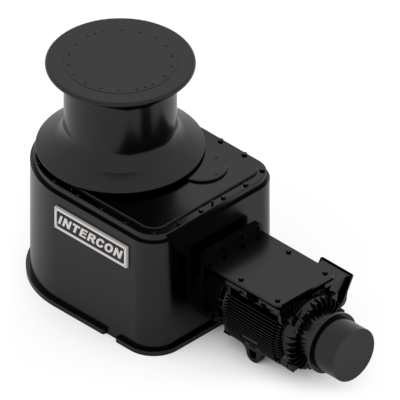

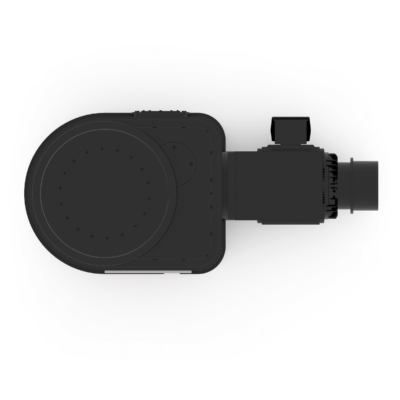

EVC-40 Stern Capstan

EVC-40 Stern Capstan

Max Line Pull:
15 tn @ 30 fpm

Capstan Diamter:
27.0 in

Mounting:
Above Deck

Bitt Capacity:
150 tn

Weight:
9,500 lb

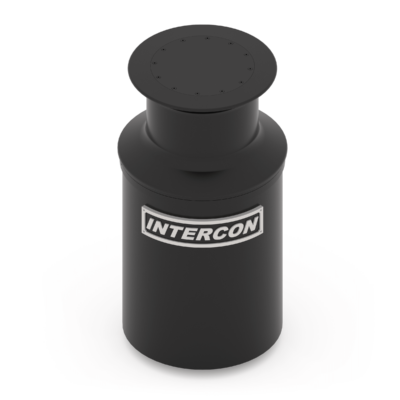

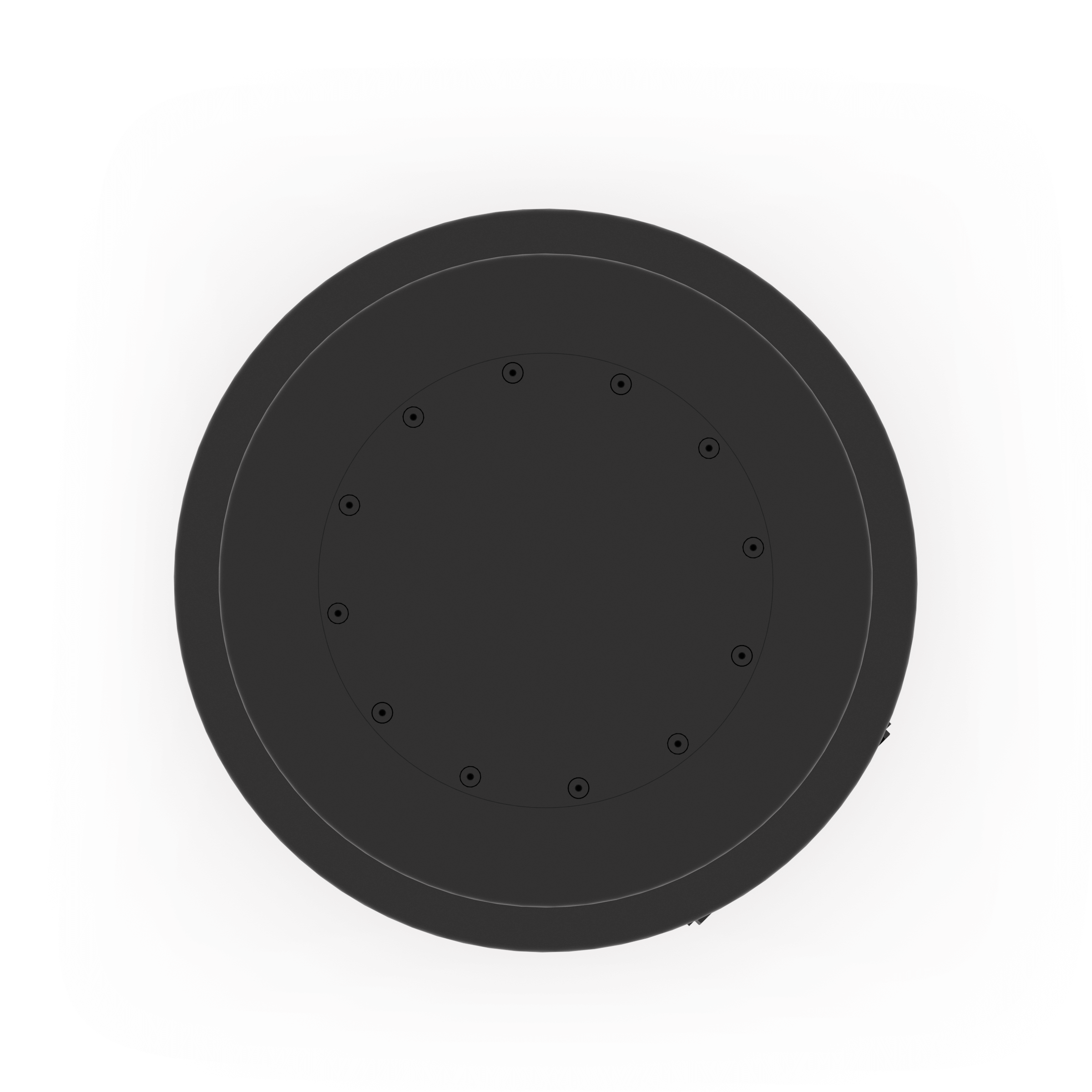

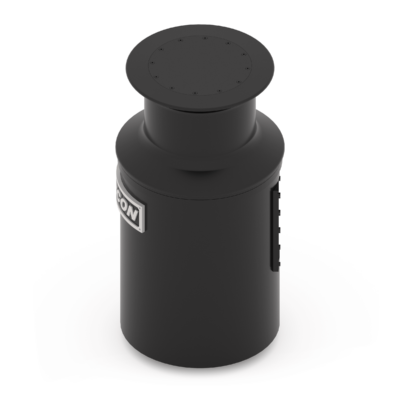

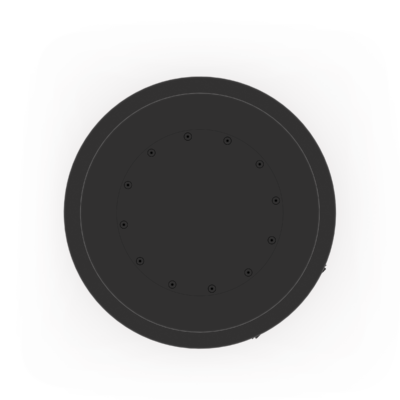

EVC-18 Deck Capstan

EVC-18 Deck Capstan

Max Line Pull:
5.5 tn @ 50 fpm

Light Line Pull:
2.75 tn @ 100 fpm

Capstan Diamter:
21.0 in

Mounting:
Above/Below Deck

Bitt Capacity:
25 tn

Weight:
2,800 lb
